Gord Telecom Inc.
Model: Light Duty (SBAL)
Pipe: No Pipe
Price:
$180.00 CAD

Description

Saddle Bracket Assembly (SBA)

Pipe-to-Pipe Connection System

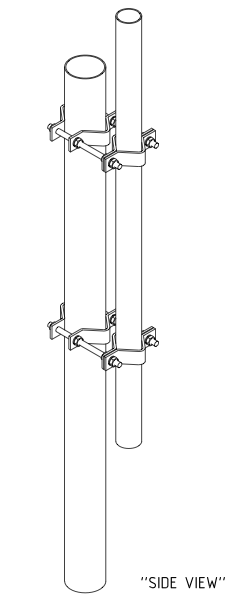

The Saddle Bracket Assembly (SBA) provides a compact, robust solution for connecting new antenna pipes to existing steel structures. Whether installed in a snug or offset position, the SBA enables fast and secure mounting with minimal hardware and no welding or drilling required.

Its lightweight profile makes it ideal for retrofit installations where speed, simplicity, and reliability are key.

Each set includes high-strength galvanized hardware for a complete pipe-to-pipe connection. For structural balance and stability, it is recommended to use a minimum of two assemblies per connection.

Includes

  • (8) Saddle Plates
  • (4) Threaded Rod Assemblies
  • (1) Optional Pipe

Specifications

  • Application: Snug or offset pipe-to-pipe connection
  • Configuration: Saddle-style clamp
  • Included Hardware: HDG bolts, nuts, and washers for one complete connection
  • Recommended Usage: Minimum of two assemblies per pipe
  • Finish: Hot-Dip Galvanized
  • Manufactured: Brampton, Ontario, Canada

Ordering Information

  • Sets sold individually
  • One set contains enough for (2) rows and includes (8) plates and (4) threaded rod assemblies
  • Pipes sold separately
  • Compatible with standard telecom and structural pipe sizes
  • Custom configurations available upon request

Key Benefits

  • Quick and Simple Installation
    Perfect for retrofit and upgrade projects
  • Compatible with Multiple Configurations
    Supports snug or offset applications
  • Canadian-Made Quality
    Built in-house at our Brampton facility for quick turnaround
  • Trusted Industry Performer
    Used across telecom, utility, and structural retrofit installations

Key Facts

  • Stand-Off Distance: 100mm to 200mm max.
  • Threaded Rod: (8) 1/2" x 13" threaded rods or (8) 5/8" x 13" threaded rods supplied
  • Mount Weight: 8kg to 10kg without pipe
  • Pipe Diameter: 73mm OD to 114mm OD
  • Pipe Length: 3m maximum

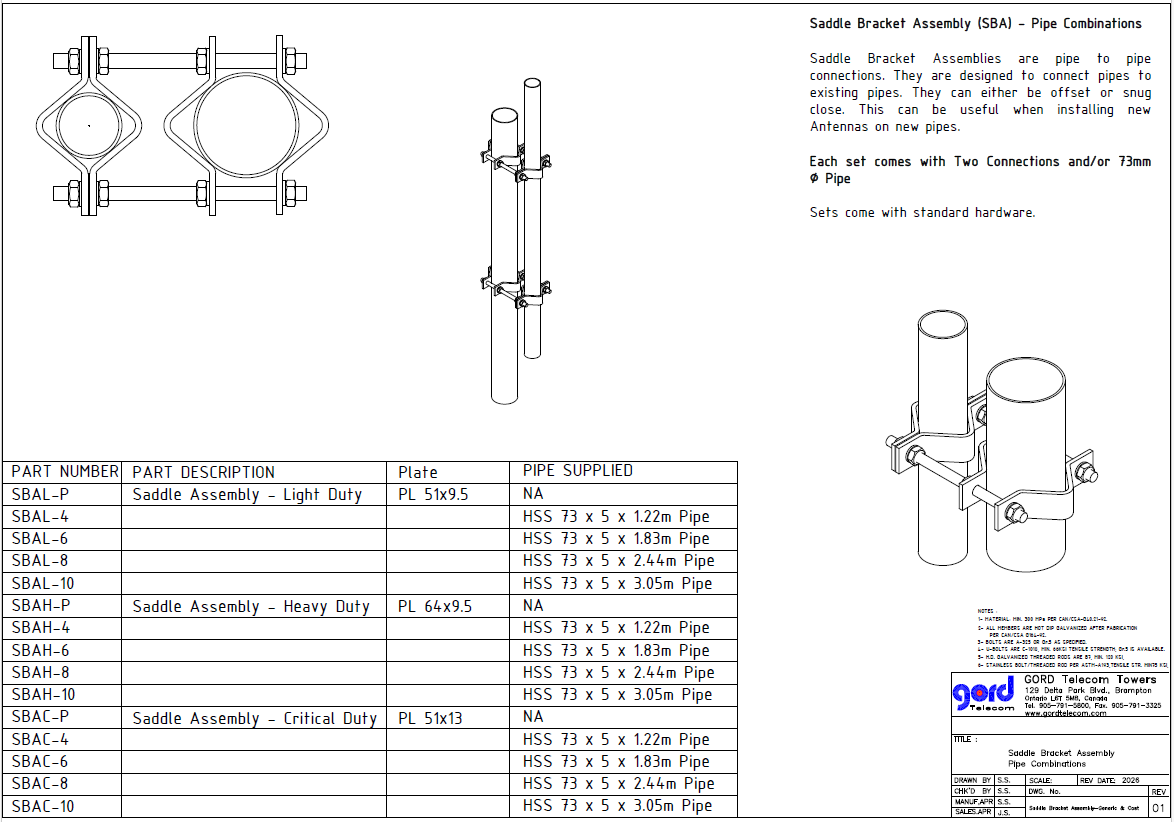

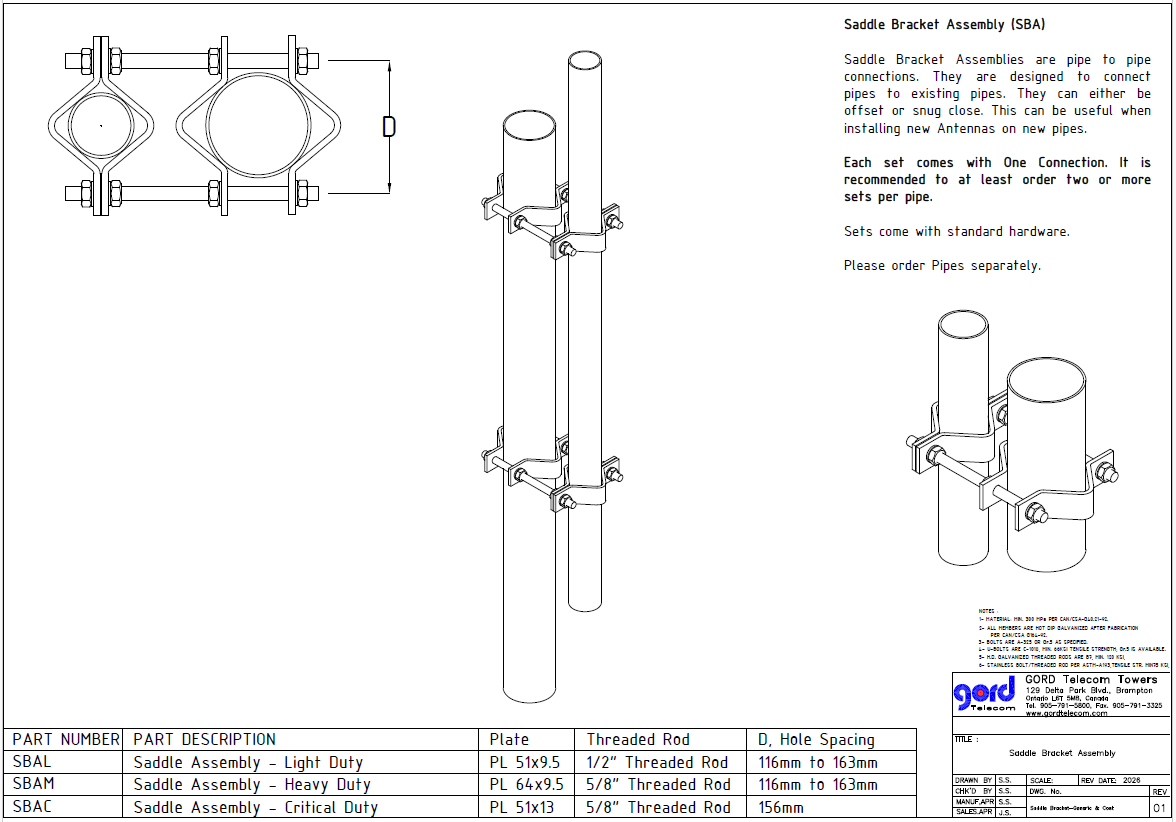

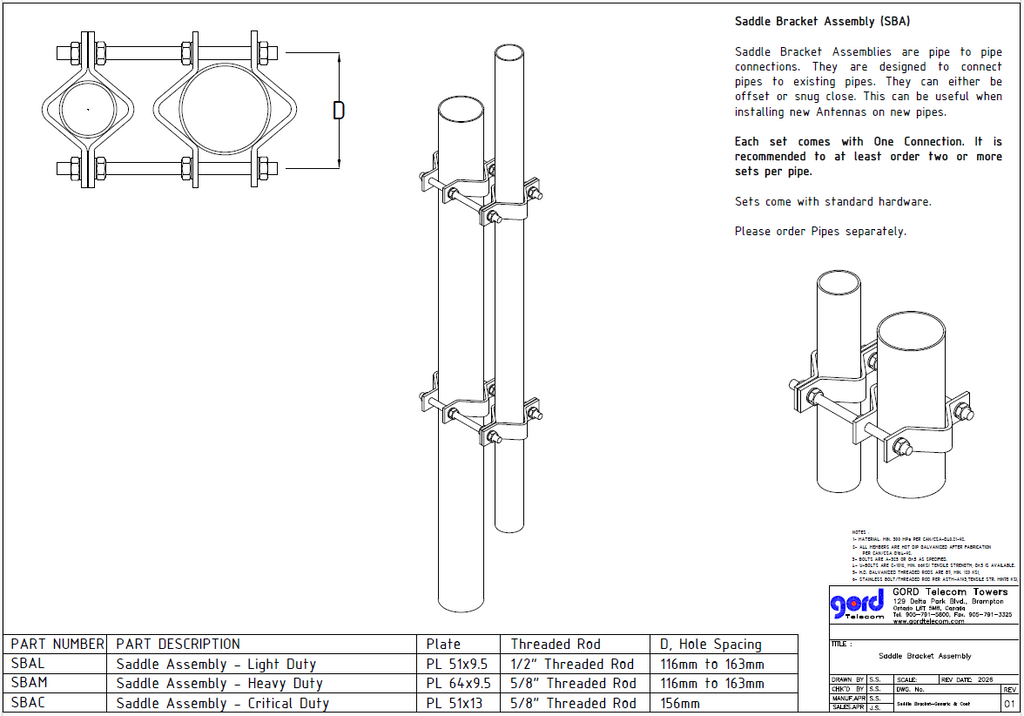

Plate Dimensions

  • SBAL: PL 51 x 9.5 300W/350W HDG Steel
  • SBAH: PL 64 x 9.5 300W/350W HDG Steel
  • SBAC: PL 51 x 13 300W/350W HDG Steel
