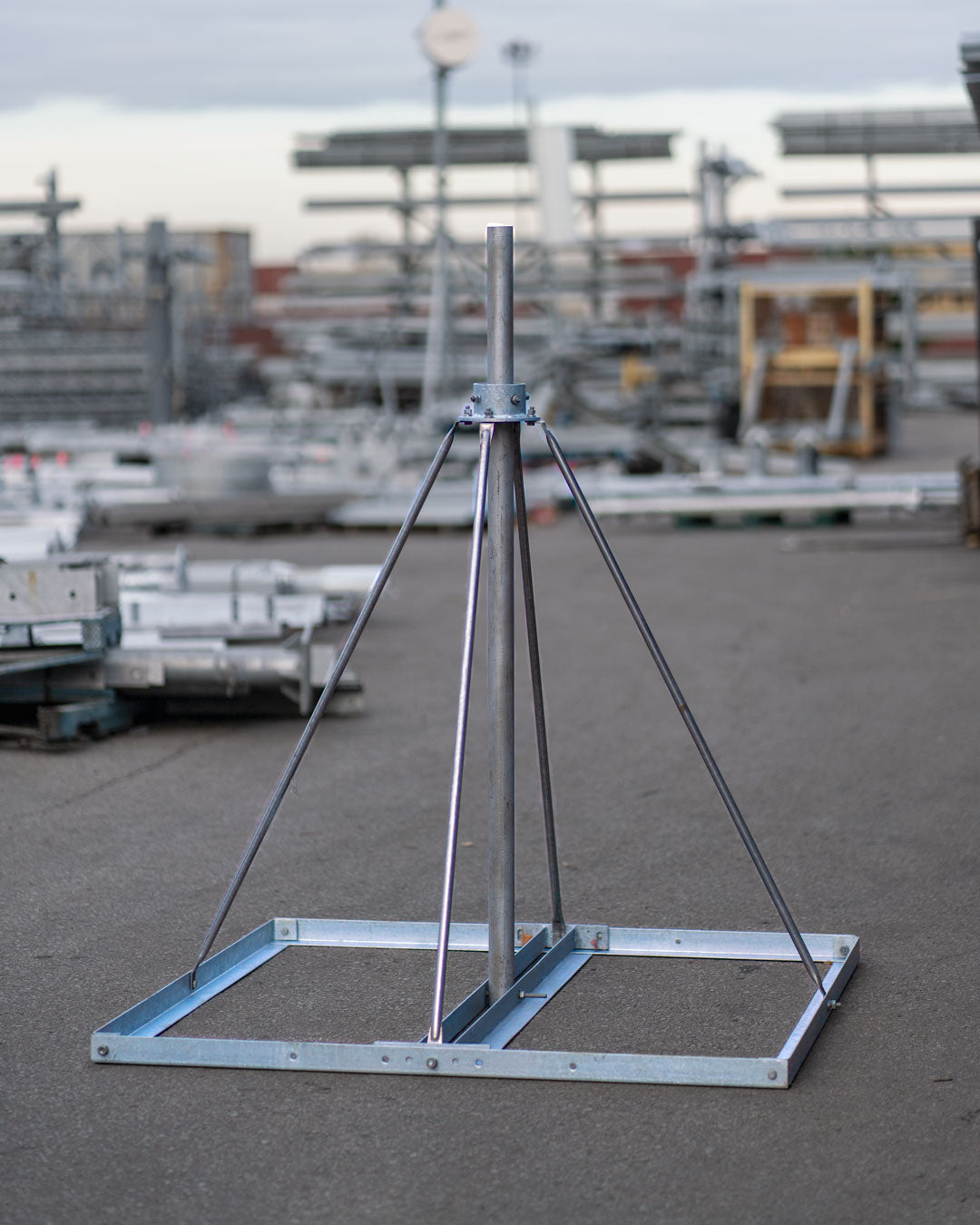

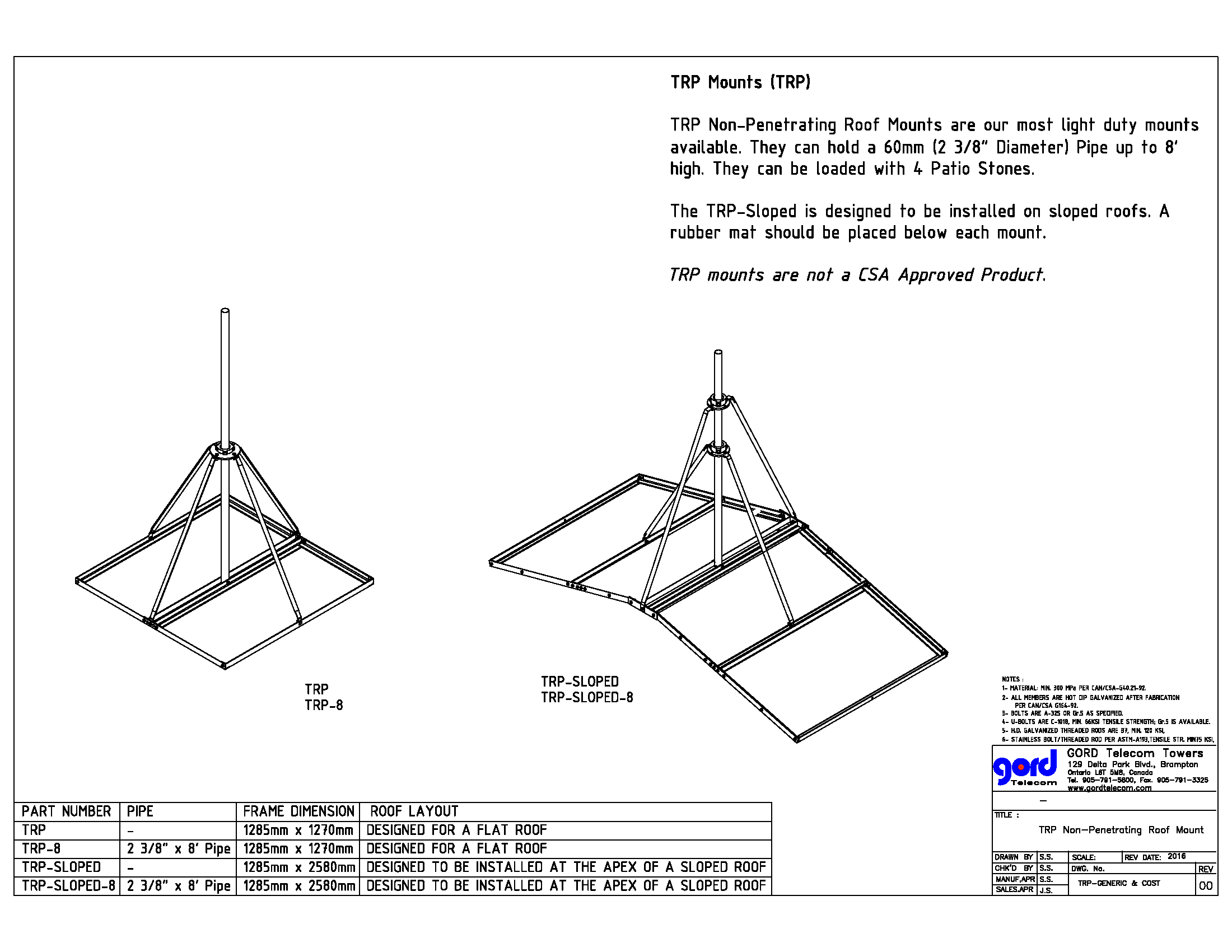

TRP Roof Mount

The TRP Roof Mount is a compact, lightweight, non-penetrating roof mount designed for supporting small antennas and microwave units on a centrally located pipe.

Featuring a user-friendly knock-down design, this mount provides a slim profile and easy installation. The frame is designed to accommodate patio stones for ballast, providing stability without requiring roof penetrations.

The TRP Roof Mount is designed exclusively for a 60mm OD / 2 3/8" OD pipe.

Specifications

• Frame Size: 1270mm x 1270mm

• Mount Weight: 28kg

• Compatible Pipe: 60mm OD / 2 3/8" OD

• Maximum Pipe Length: 2.4m (8')

• Stone Type: Patio stone

• Rubber Mats Recommended: (4) rubber mats

• Finish: Hot-Dip Galvanized

Ordering Information

• Pipe sold separately

• Rubber mats sold separately

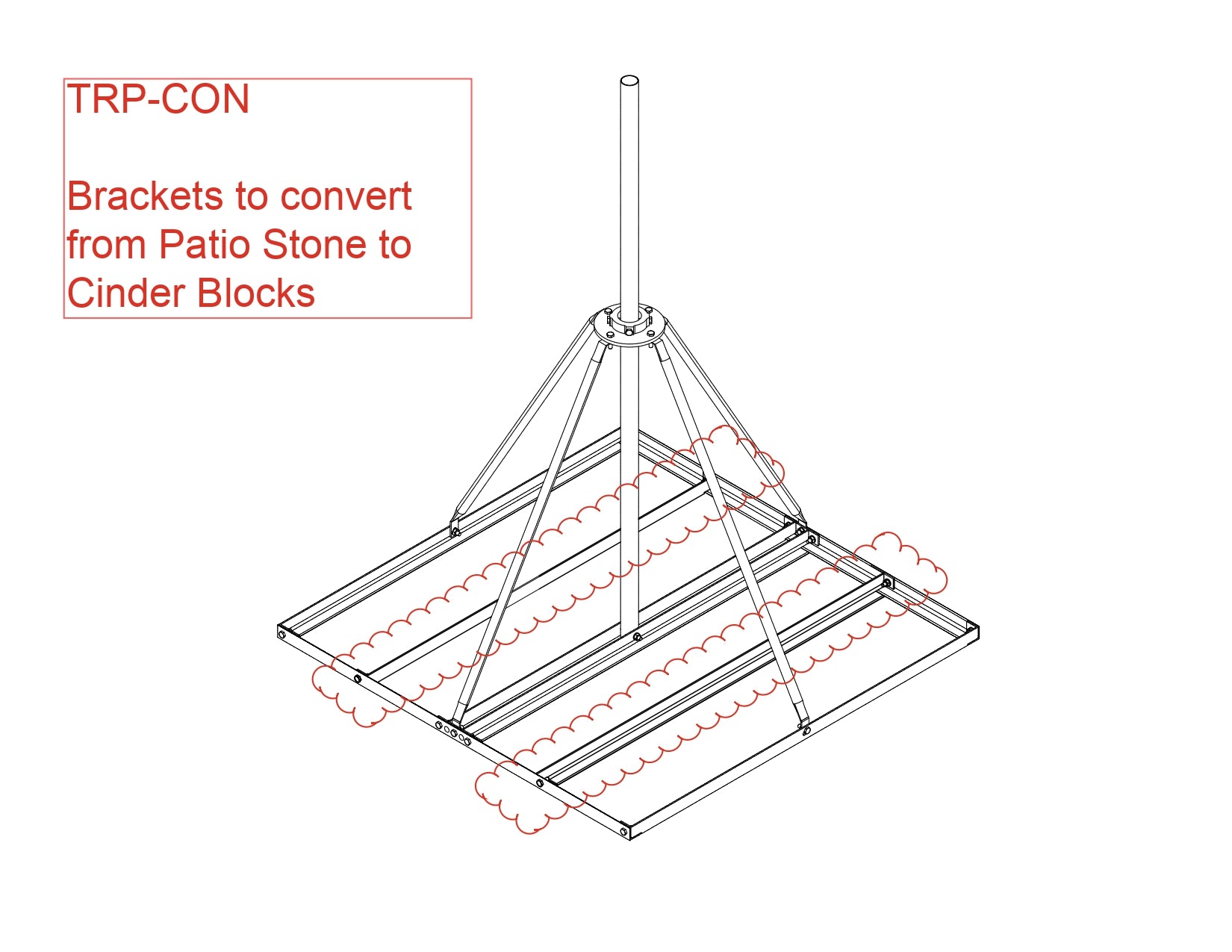

• Order TRP-CON separately to convert from patio stones to cinder blocks

Key Benefits

• Compact Roof Mount Design
  Ideal for small antenna and microwave mounting applications

• Non-Penetrating Installation
  Designed to be ballasted with patio stones to help avoid roof penetrations

• Lightweight and Easy to Handle
  Slim profile makes transport, handling, and rooftop installation easier

• Knock-Down Construction
  Designed for practical assembly and installation on-site

• Hot-Dip Galvanized Finish
  Provides corrosion protection for outdoor rooftop applications
