STND-900 Roof Mount

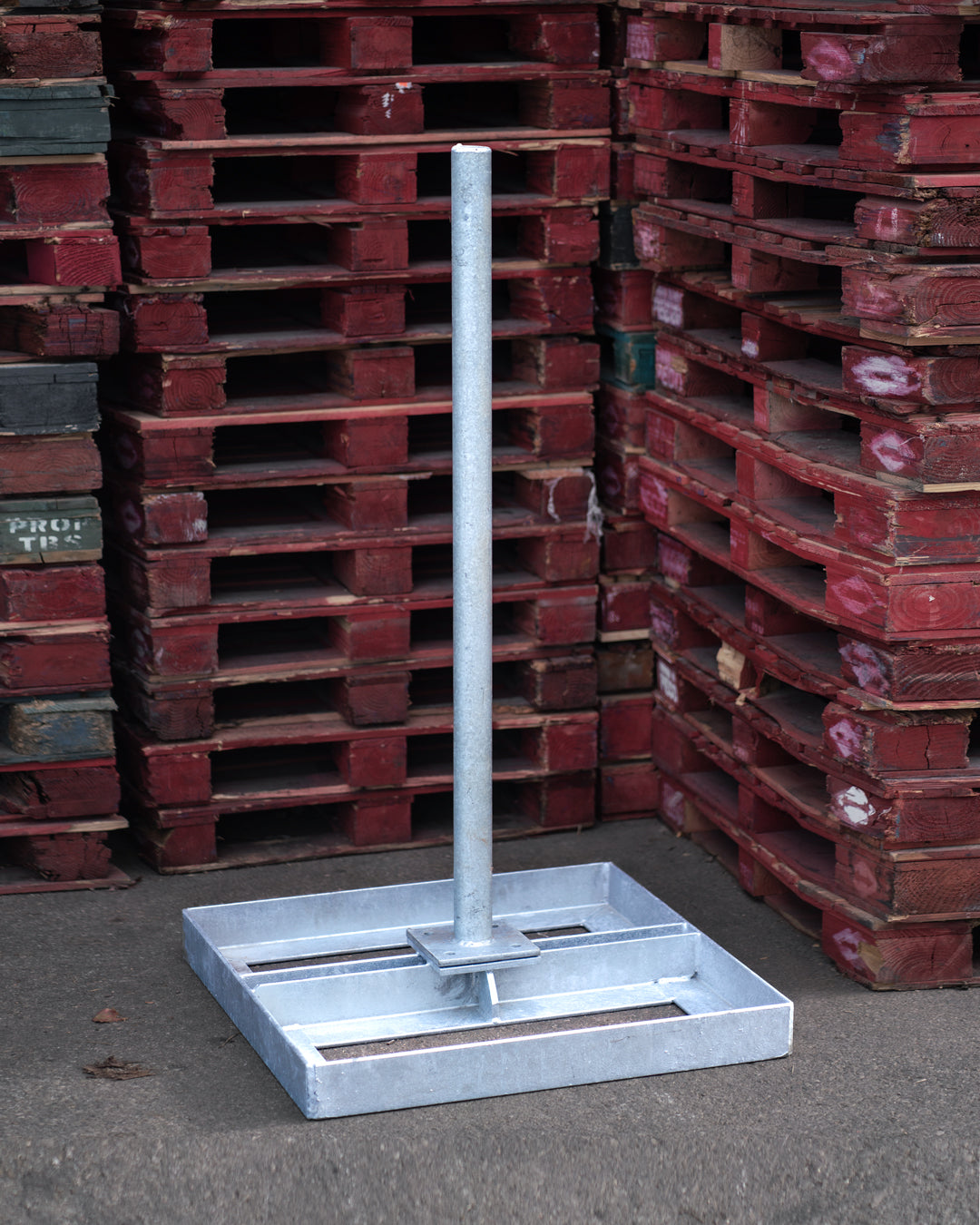

The STND-900 Roof Mount is one of our smallest roof ballast mounts, designed for simple installation without compromising strength.

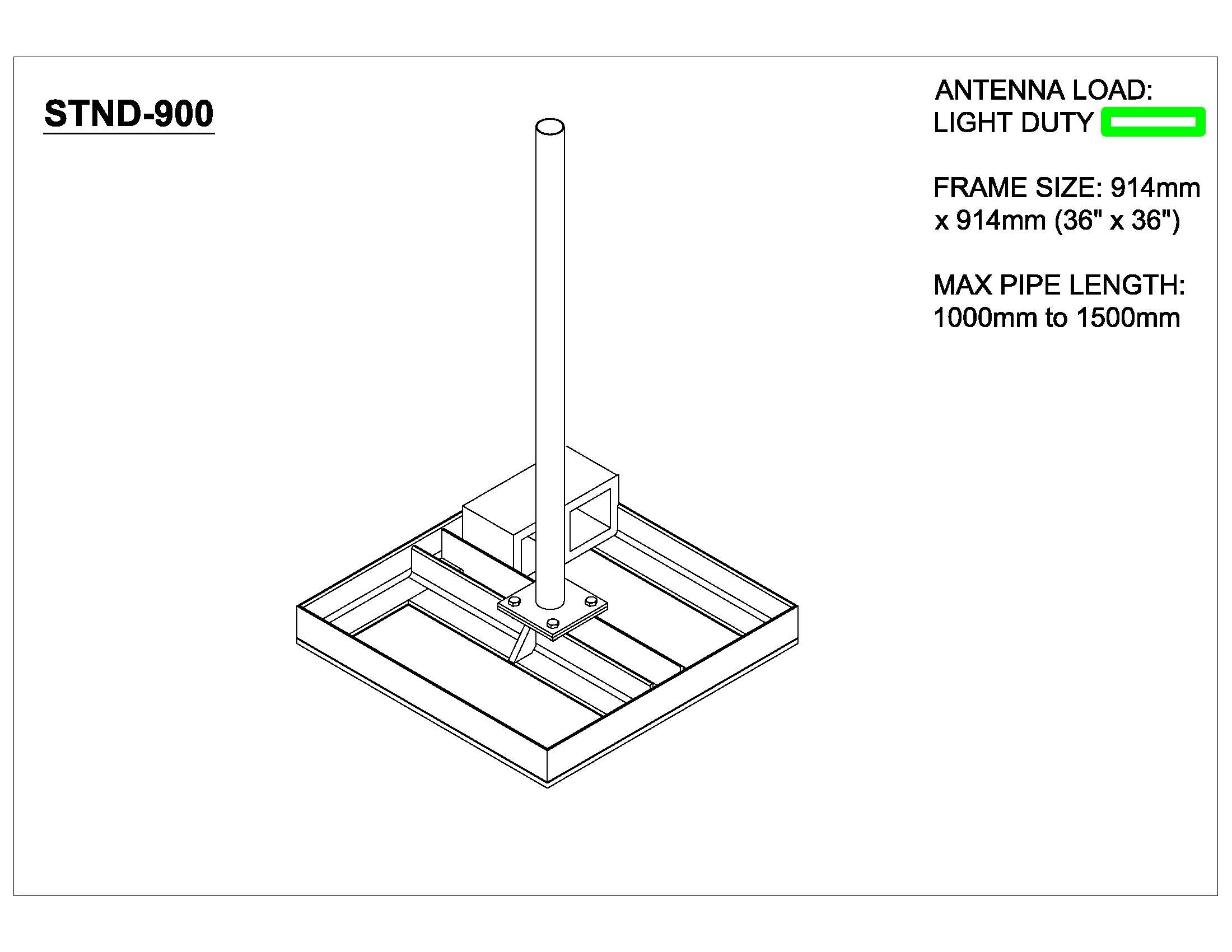

Its fully welded 914mm x 914mm frame provides a compact and stable platform for small rooftop equipment. This mount is well suited for small microwave antennas, GPS mounts, battery units, and other compact devices.

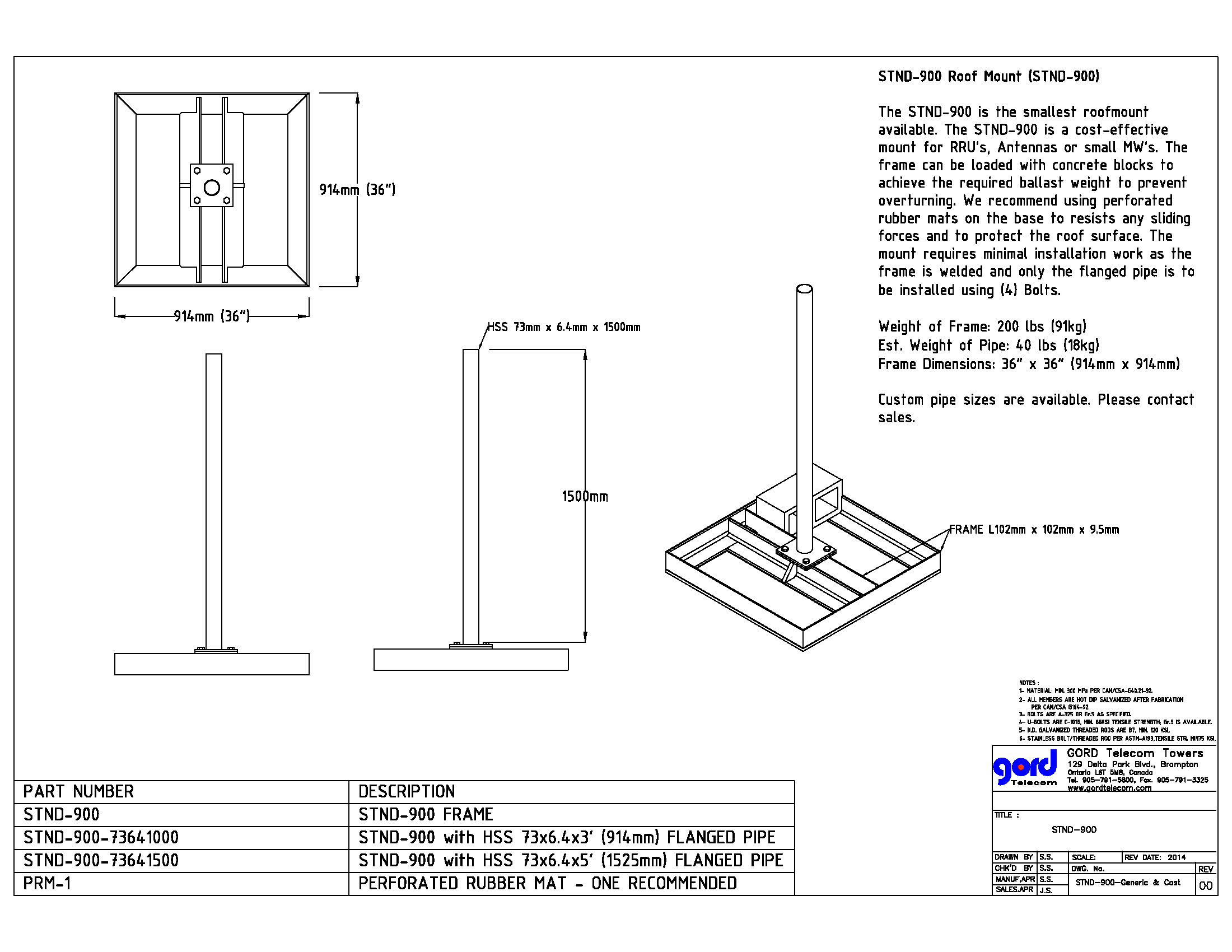

The STND-900 is designed around an HSS 73mm pipe with flange and cap. Standard pipe lengths are available in 914mm (3') and 1500mm (5'), with custom pipe lengths available upon request.

Specifications

• Frame Size: 914mm x 914mm (3' x 3')

• Mount Weight: 63kg (140 lbs)

• Stone Type: Patio stone

• Rubber Mats Recommended: (1) rubber mat

• Pipe Sizes: 73mm OD to 114mm OD

• Maximum Pipe Length: 1.5m

• Finish: Hot-Dip Galvanized

Ordering Information

• Flanged pipe sold separately

• Rubber mats sold separately

• Standard pipe lengths available: 914mm (3') and 1500mm (5')

• Custom pipe lengths available upon request

Key Benefits

• Compact Roof Mount Design
  Ideal for small rooftop equipment and limited-space installations

• Fully Welded Frame
  Provides strength and stability in a compact footprint

• Simple Installation
  Designed for fast rooftop placement and setup

• Flexible Pipe Options
  Available with standard or custom flanged pipe lengths

• Hot-Dip Galvanized Finish
  Provides corrosion protection for outdoor rooftop applications
