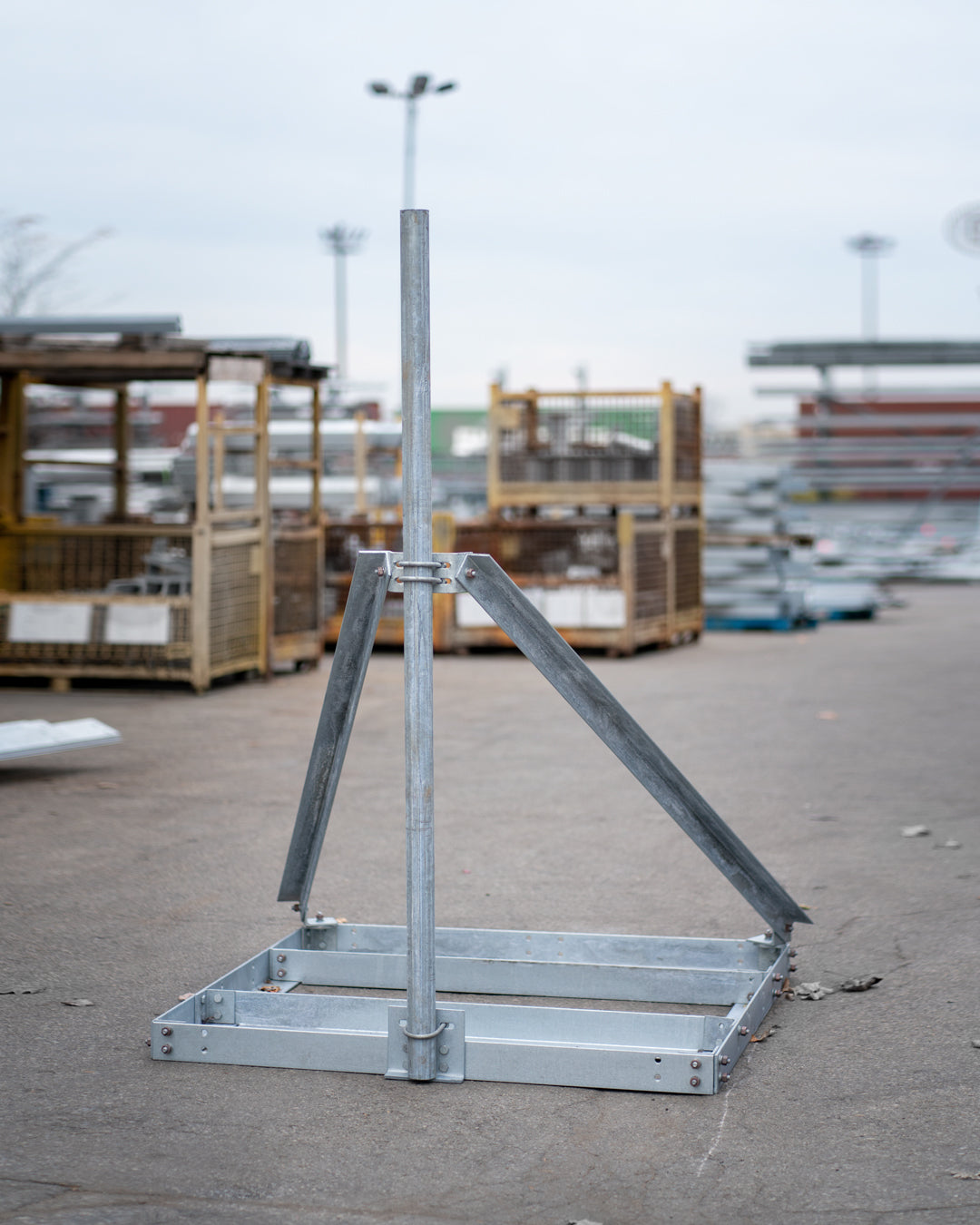

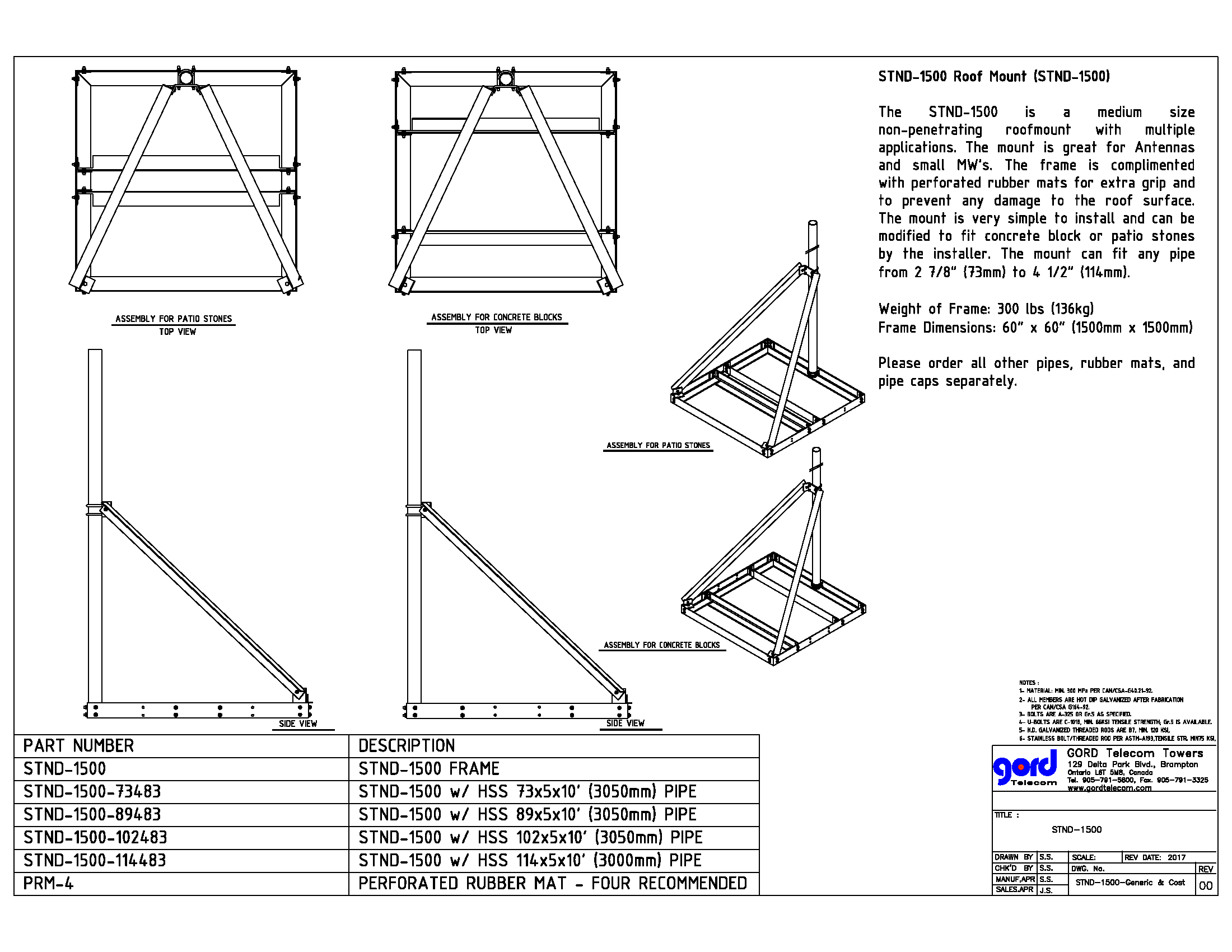

STND-1500 Roof Mount

The STND-1500 Roof Mount is a versatile, medium-sized, non-penetrating roof mount designed for a wide range of rooftop applications, including antennas and small microwave units.

Its 1500mm x 1500mm frame provides a stable mounting platform while remaining practical for rooftop transportation and on-site assembly. The mount can be adapted for either patio stone or concrete block ballast, giving contractors flexibility based on site conditions.

The STND-1500 Roof Mount is compatible with pipe sizes ranging from 73mm OD to 114mm OD. Rubber mats are recommended to help protect the roof membrane.

Specifications

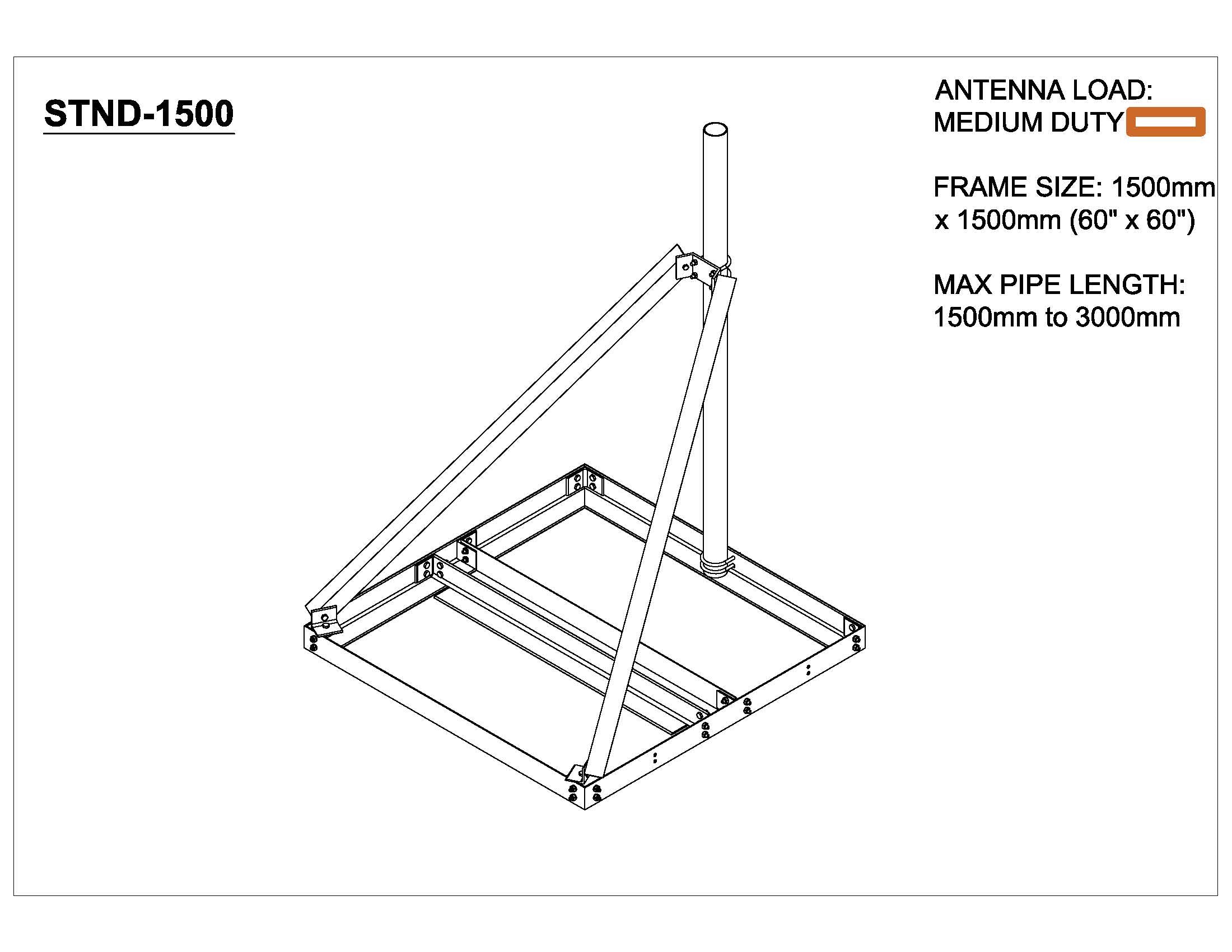

• Frame Size: 1500mm x 1500mm

• Mount Weight: 136kg

• Stone Type: Patio stone or concrete block

• Rubber Mats Recommended: (4) rubber mats

• Pipe Sizes: 73mm OD to 114mm OD

• Maximum Pipe Length: 3m

• Finish: Hot-Dip Galvanized

Ordering Information

• Pipe sold separately

• Rubber mats sold separately

• Designed for patio stone or concrete block ballast

• Compatible with standard telecom pipe sizes from 73mm OD to 114mm OD

• Ballast configuration can be adjusted on-site by the contractor

Key Benefits

• Versatile Ballast Options
  Can be configured for either patio stones or concrete blocks

• Non-Penetrating Installation
  Designed to help avoid roof penetrations while supporting rooftop equipment

• Rooftop-Friendly Design
  Components are kept under 3m for easier transportation and handling

• Compatible with Multiple Pipe Sizes
  Supports 73mm OD to 114mm OD pipe configurations

• Hot-Dip Galvanized Finish
  Provides corrosion protection for outdoor rooftop applications
