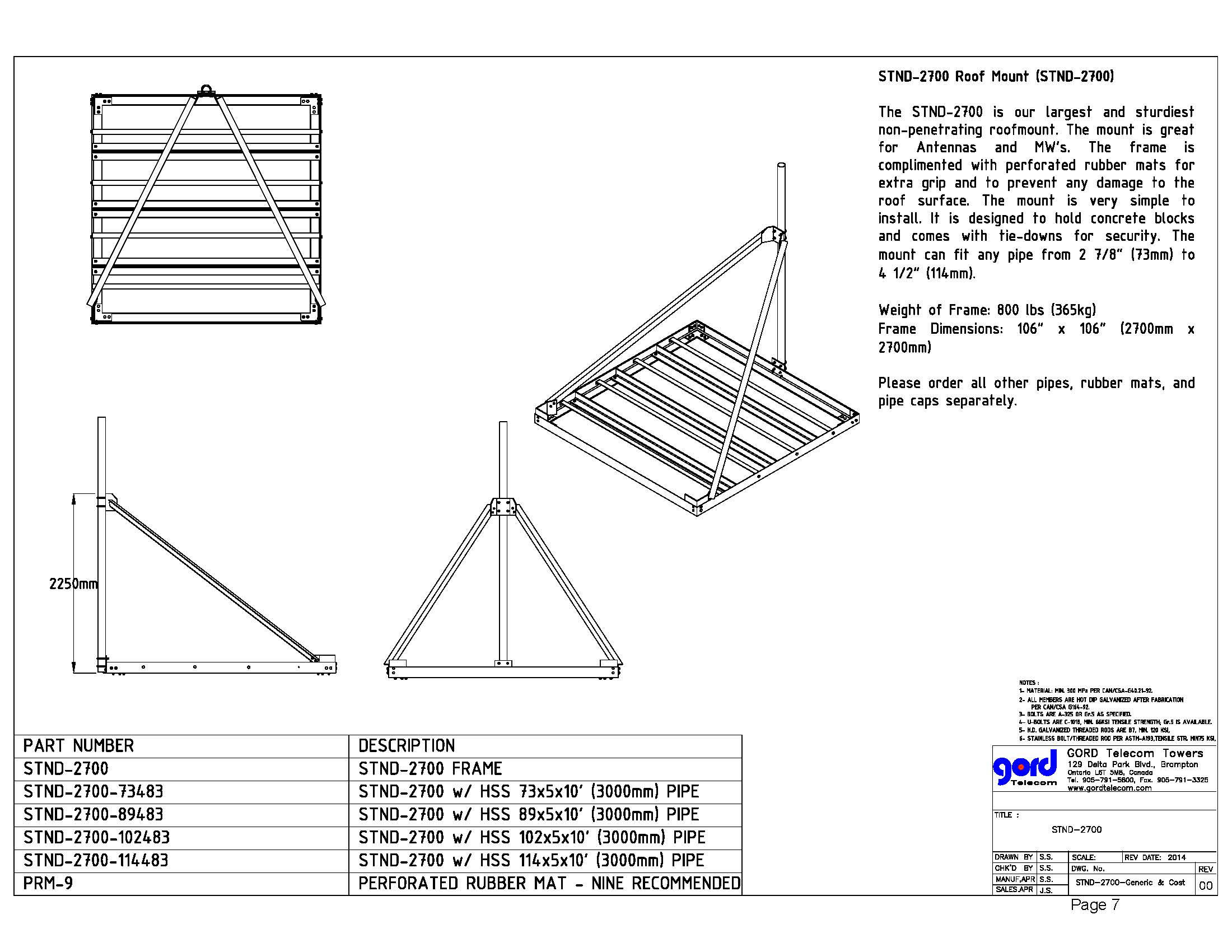

STND-2700 Roof Mount

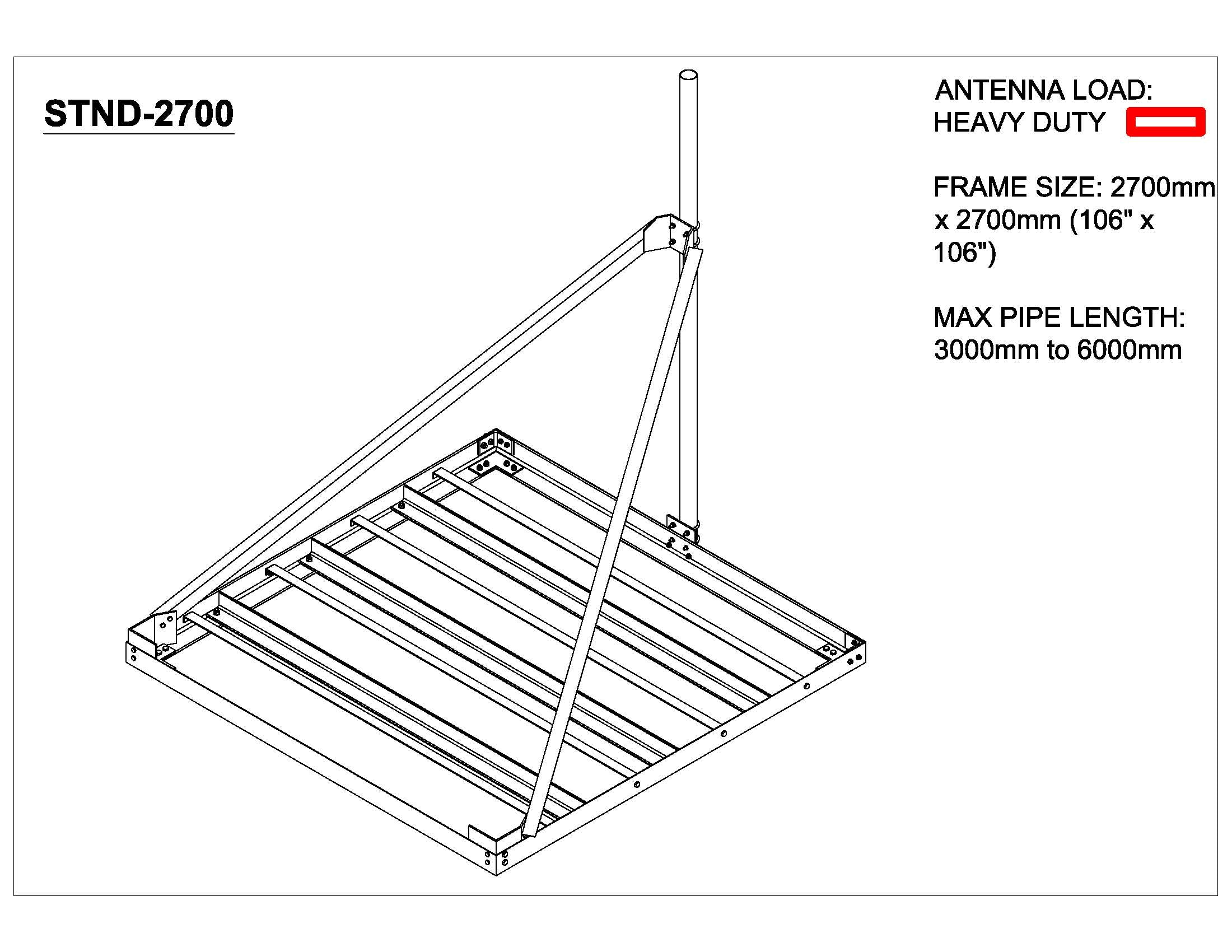

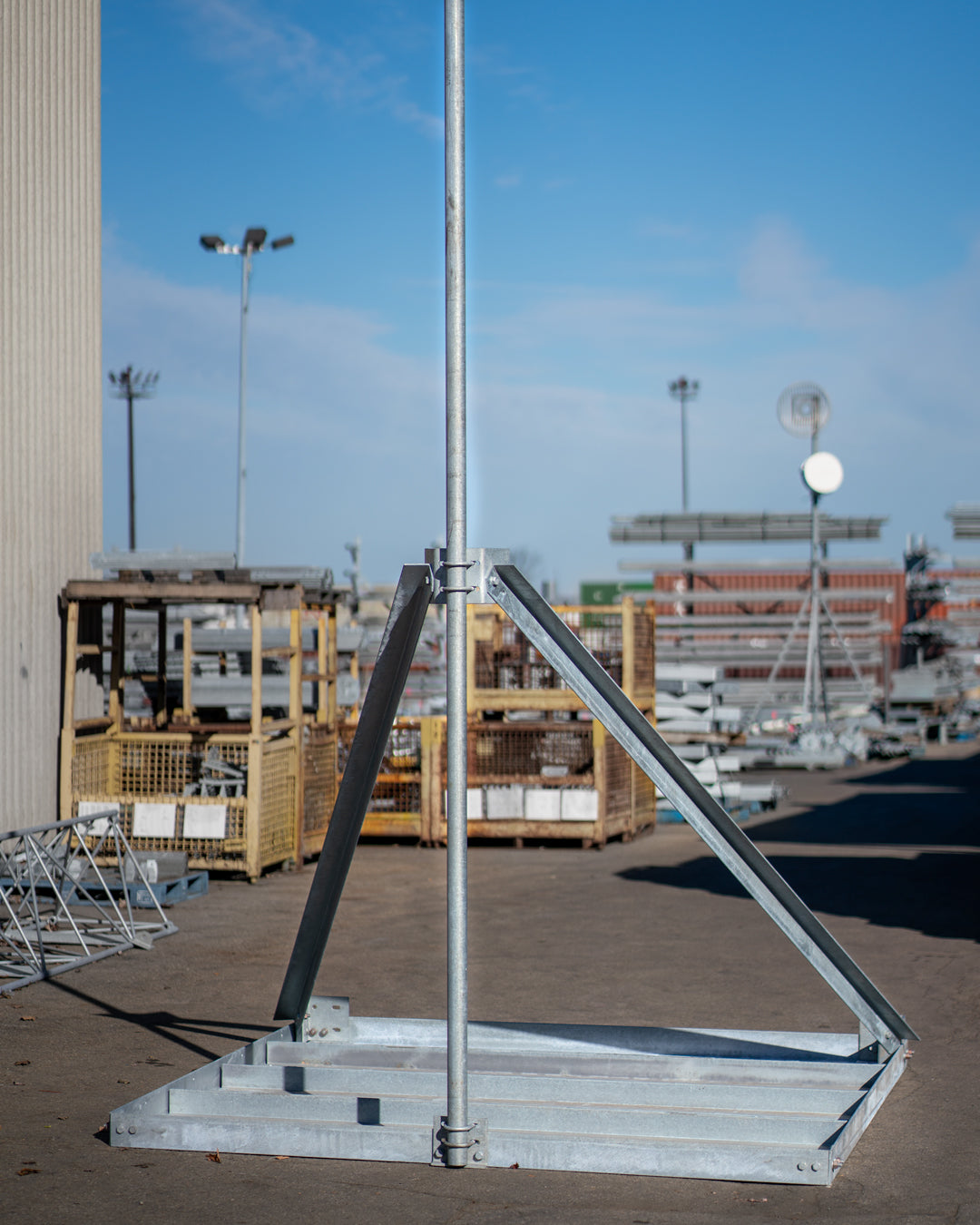

The STND-2700 Roof Mount is one of our largest and sturdiest non-penetrating roof mounts. Its 2700mm x 2700mm frame is designed to support antennas and microwave units with excellent stability.

The mount is designed for patio stone ballast and on-site assembly. It is compatible with pipe sizes ranging from 73mm OD to 114mm OD.

Most components are under 3m for easier rooftop transportation. Please note that the diagonal braces are approximately 3600mm long, so crane access or proper elevator/staircase clearance may be required.

Rubber mats are recommended to help protect the roof membrane.

Specifications

• Frame Size: 2700mm x 2700mm

• Mount Weight: 365kg

• Stone Type: Patio stone

• Rubber Mats Recommended: (9) rubber mats

• Pipe Sizes: 73mm OD to 114mm OD

• Maximum Pipe Length: 3m to 6m

• Finish: Hot-Dip Galvanized

Ordering Information

• Pipe sold separately

• Rubber mats sold separately

• Designed for patio stone ballast

• Site access should be reviewed due to 3600mm diagonal braces

Key Benefits

• Large, Stable Frame
  Provides strong support for antenna and microwave mounting applications

• Non-Penetrating Installation
  Designed for patio stone ballast to help avoid roof penetrations

• Compatible with Multiple Pipe Sizes
  Supports 73mm OD to 114mm OD pipe configurations

• Designed for On-Site Assembly
  Components are intended for practical rooftop assembly and installation

• Hot-Dip Galvanized Finish
  Provides corrosion protection for outdoor rooftop applications
