TRP-SLOPED Roof Mount

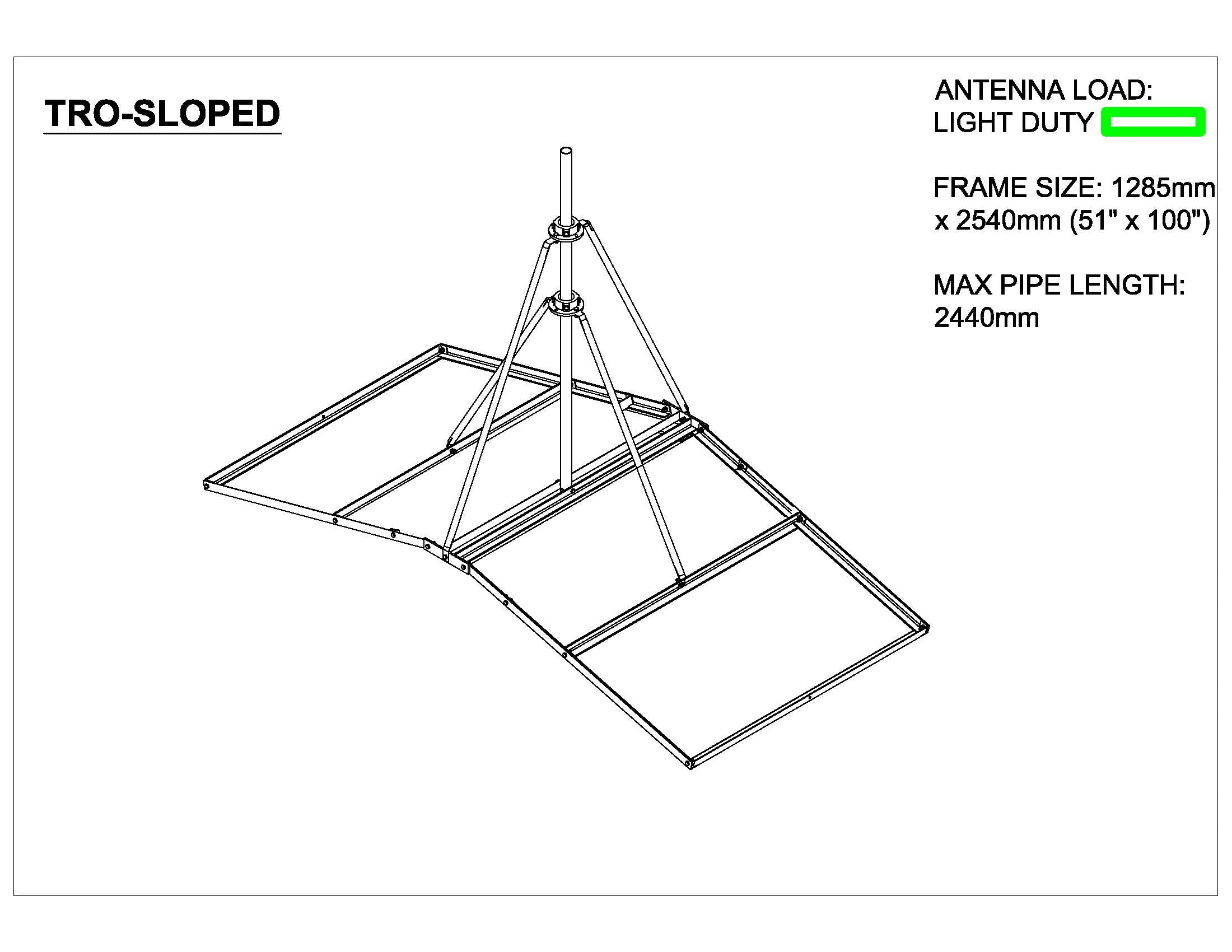

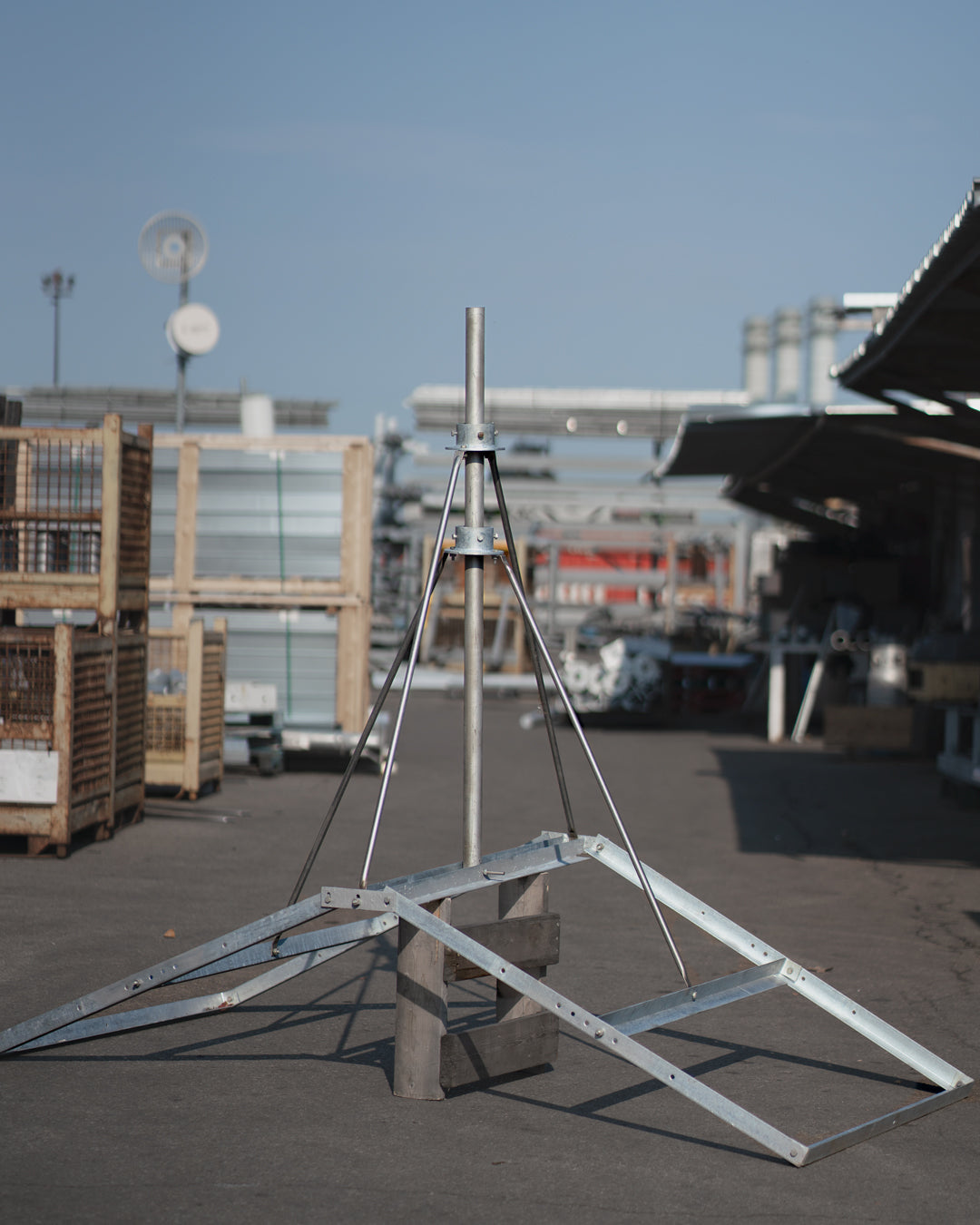

The TRP-SLOPED Roof Mount is a compact, lightweight, non-penetrating roof mount designed specifically for sloped roof applications.

Engineered to support small antennas, this mount features a customizable frame that adapts to various roof slopes for a secure, low-profile installation. Its knock-down design allows for easier handling and assembly at the roof apex.

The TRP-SLOPED Roof Mount is designed exclusively for a 60mm OD / 2 3/8" OD pipe and can be ballasted with patio stones or converted for cinder block use with the TRP-CON kit.

Specifications

• Frame Size: 1270mm x 1270mm

• Mount Weight: 51kg

• Stone Type: Patio stone

• Rubber Mats Recommended: (4) rubber mats

• Pipe Diameter: 60mm OD / 2 3/8" OD

• Recommended Pipe Length: 2.4m (8')

• Finish: Hot-Dip Galvanized

Ordering Information

• Pipe sold separately

• Rubber mats sold separately

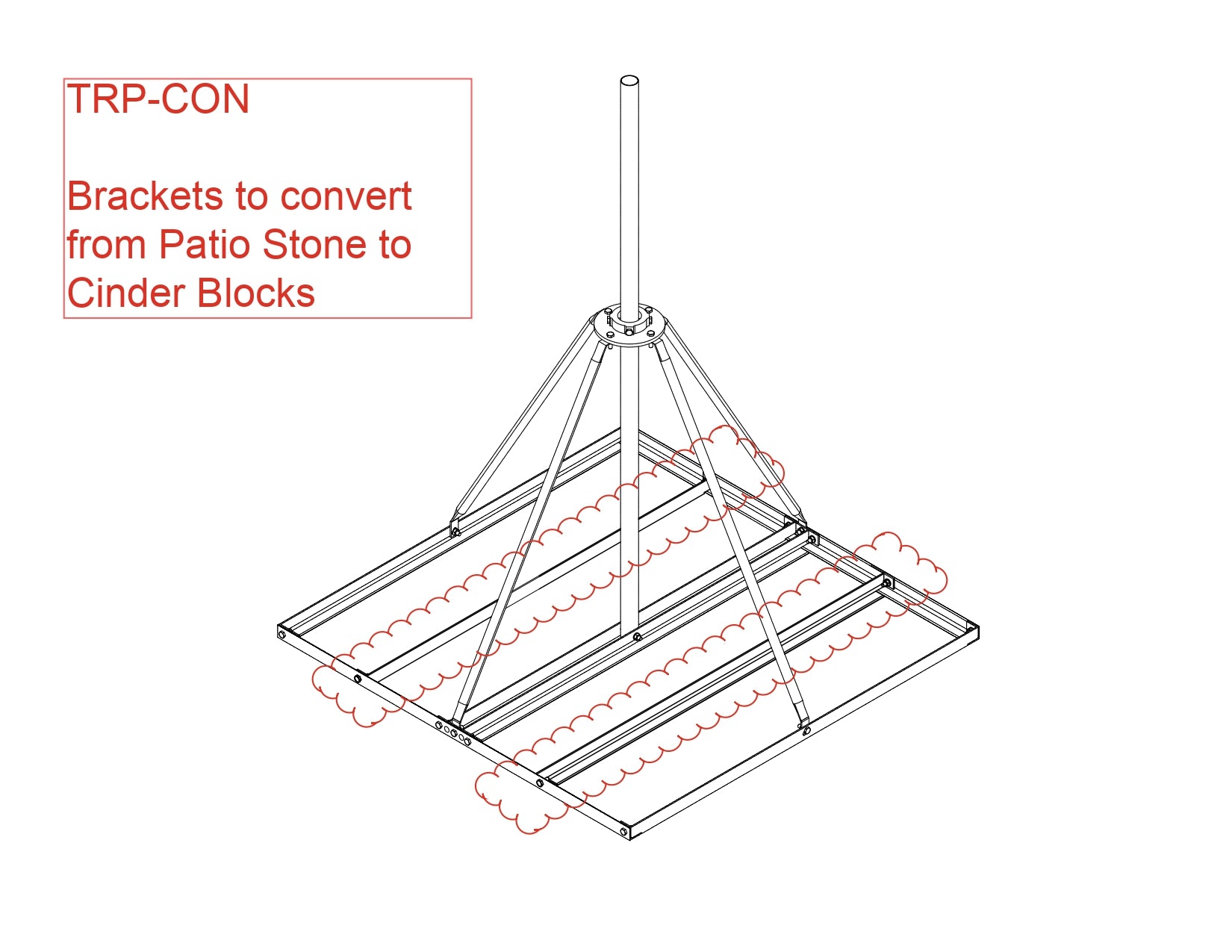

• Order TRP-CON separately to convert from patio stones to cinder blocks

Key Benefits

• Designed for Sloped Roofs
  Suitable for small antenna mounting applications on sloped roof surfaces

• Non-Penetrating Installation
  Can be ballasted with patio stones to help avoid roof penetrations

• Compact and Lightweight
  Easier to handle, transport, and install compared to larger roof mount systems

• Knock-Down Design
  Designed for practical assembly and installation at the roof apex

• Hot-Dip Galvanized Finish
  Provides corrosion protection for outdoor rooftop applications
