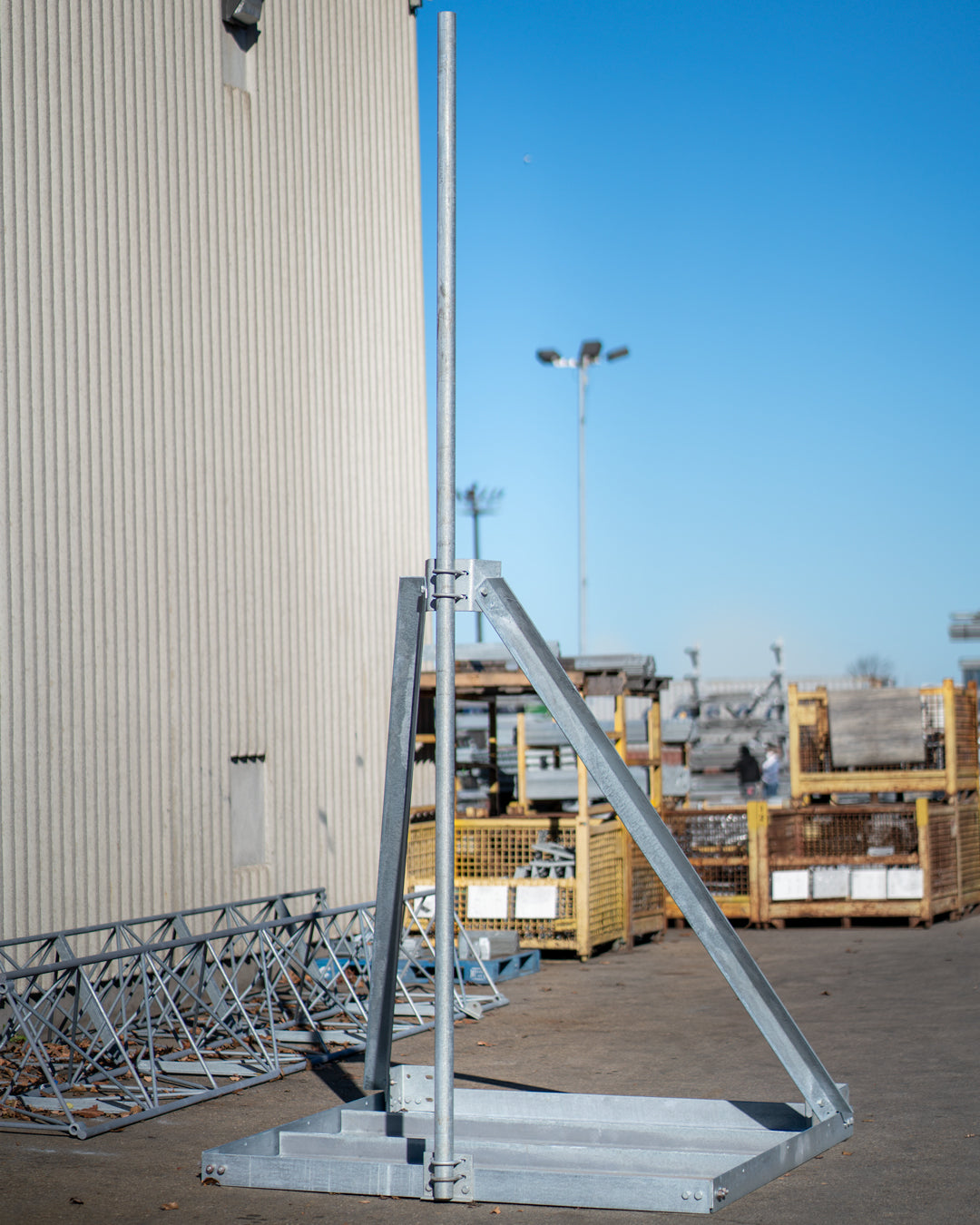

STND-2100 Roof Mount

The STND-2100 Roof Mount is a robust, large-scale, non-penetrating roof mount designed for challenging rooftop conditions.

Its 2100mm x 2100mm frame provides a stable platform for antennas and microwave units while remaining practical for rooftop transportation and installation. The mount is designed for patio stone ballast and can accommodate pipe sizes ranging from 73mm OD to 114mm OD.

All main members are kept under 3m for convenient rooftop access and transportation. Rubber mats are recommended to help protect the roof membrane.

Specifications

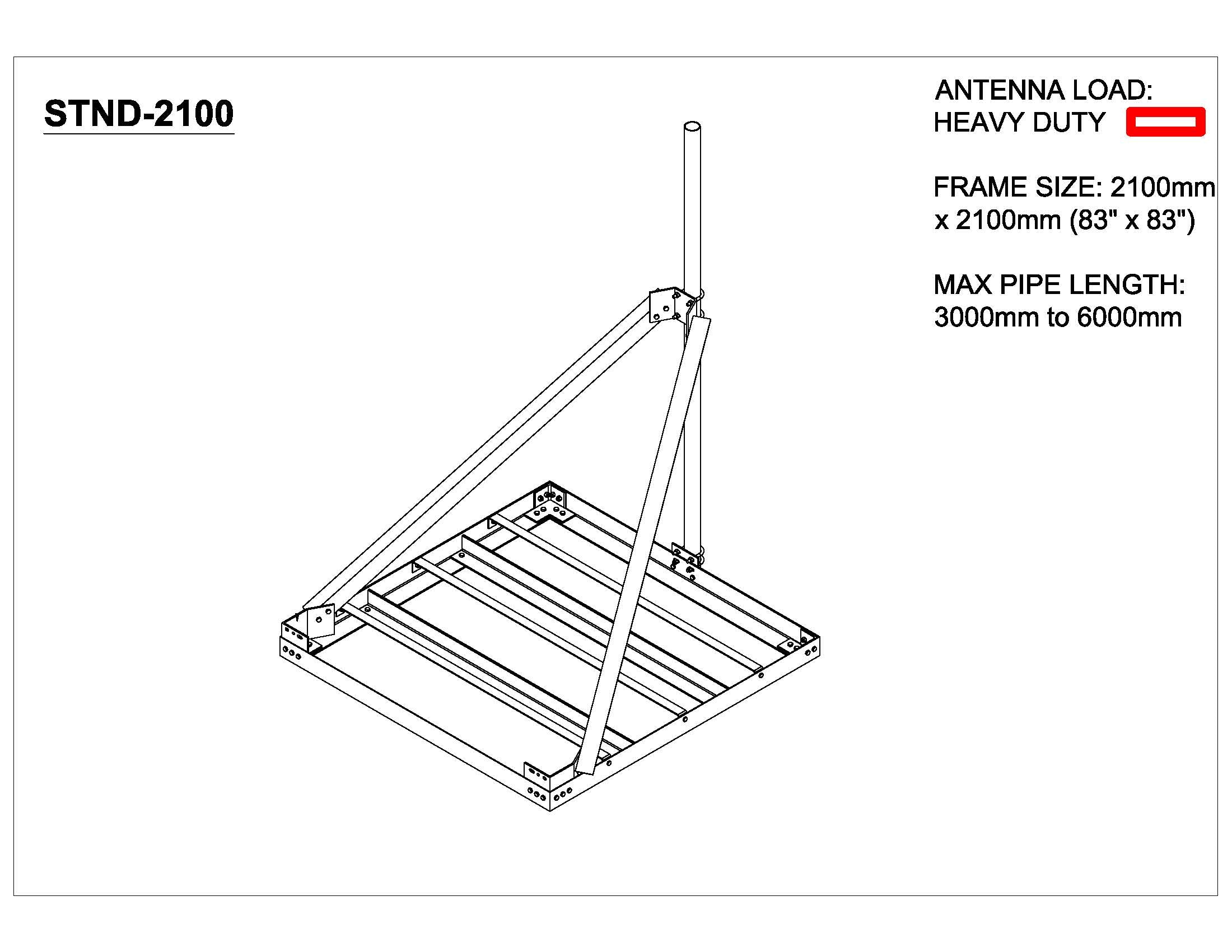

• Frame Size: 2100mm x 2100mm

• Mount Weight: 285kg

• Stone Type: Patio stone

• Rubber Mats Recommended: (9) rubber mats

• Pipe Sizes: 73mm OD to 114mm OD

• Maximum Pipe Length: 3m to 6m

• Finish: Hot-Dip Galvanized

Ordering Information

• Pipe sold separately

• Rubber mats sold separately

• Designed for patio stone ballast

• Compatible with standard telecom pipe sizes from 73mm OD to 114mm OD

Key Benefits

• Large, Stable Frame
  Provides strong support for antenna and microwave mounting applications

• Non-Penetrating Installation
  Designed for patio stone ballast to help avoid roof penetrations

• Rooftop-Friendly Design
  Main components are kept under 3m for easier rooftop transportation

• Compatible with Multiple Pipe Sizes
  Supports 73mm OD to 114mm OD pipe configurations

• Hot-Dip Galvanized Finish
  Provides corrosion protection for outdoor rooftop applications
