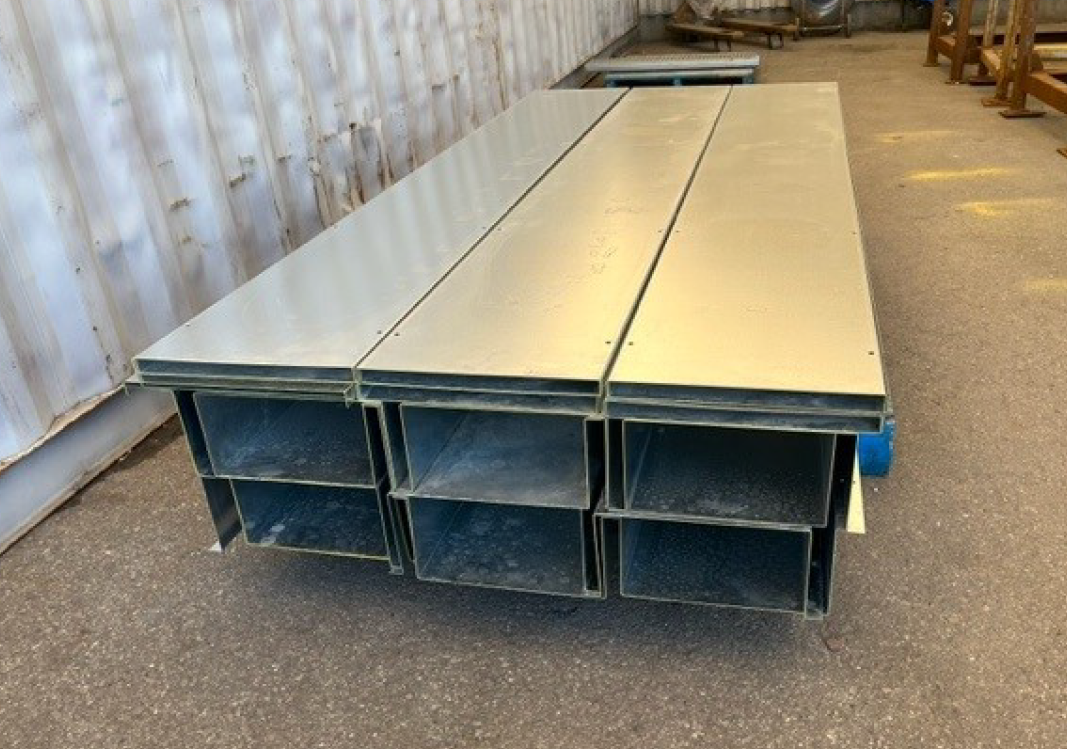

TRAY-01-Holes — Cable Tray with Lid

Galvanized sheet metal cable tray with lid designed for rooftop and wall-mounted cable management applications.

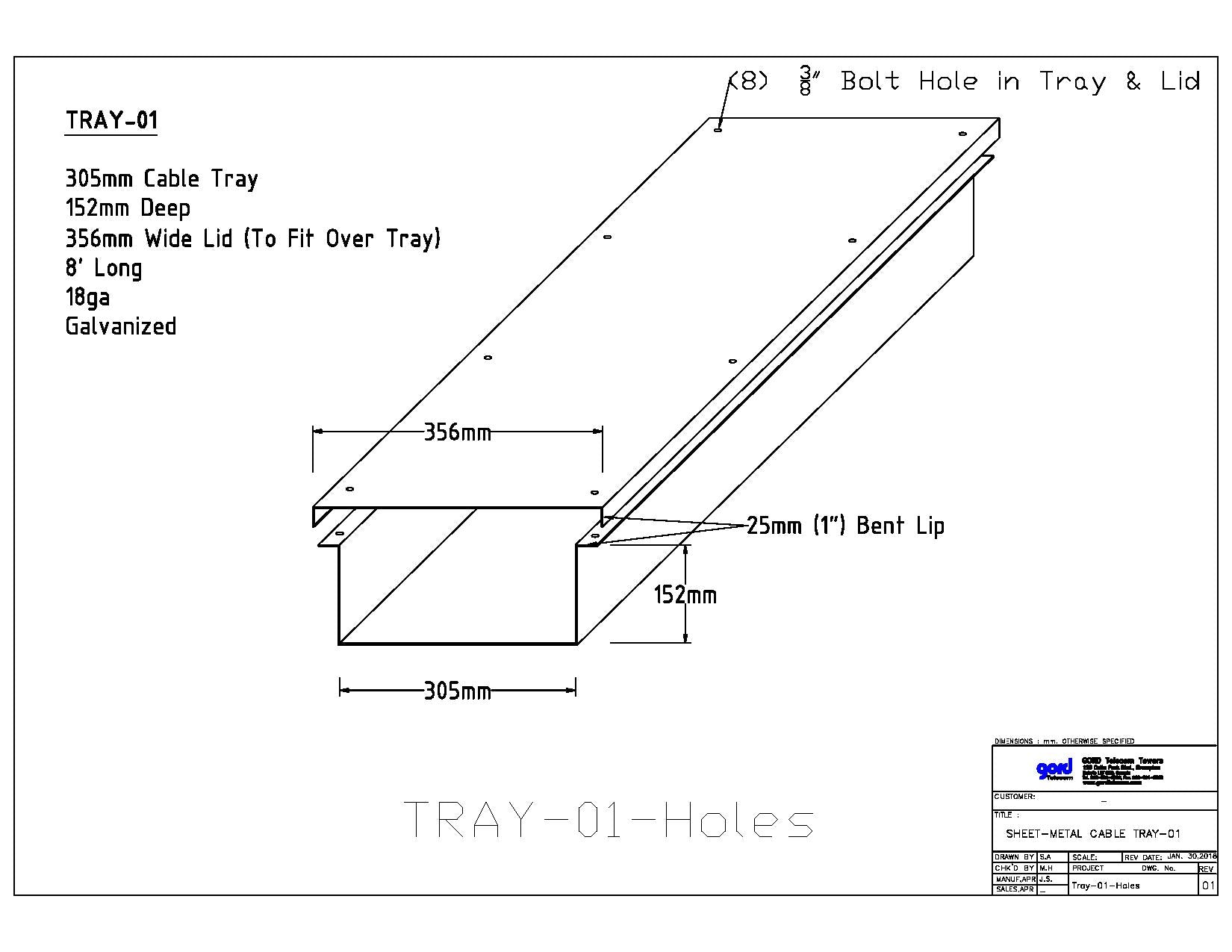

The TRAY-01-Holes model includes pre-drilled holes and supplied hardware for lid attachment. Manufactured from 18 gauge galvanized steel as standard.

Standard Specifications

• Width: 305mm (12")

• Depth: 152mm (6")

• Length: 2.44m (8')

• Material: 18ga galvanized steel

Features

• 25mm (1") mounting lips

• Pre-drilled hole configuration

• Lid attachment hardware included

• Suitable for telecom and electrical cable routing

• Custom sizes available upon request

ACCESSORIES

T-CONNECT — Cable Tray Connector Kit

Cable tray connector kit designed to join cable tray sections together.

The T-CONNECT can also be field-bent to assist with corners and directional changes.

Includes

• (2) Galvanized connector plates

• Self-tapping screws

• Order Cable Tray Separately

Compatible with Gord Telecom cable tray systems.

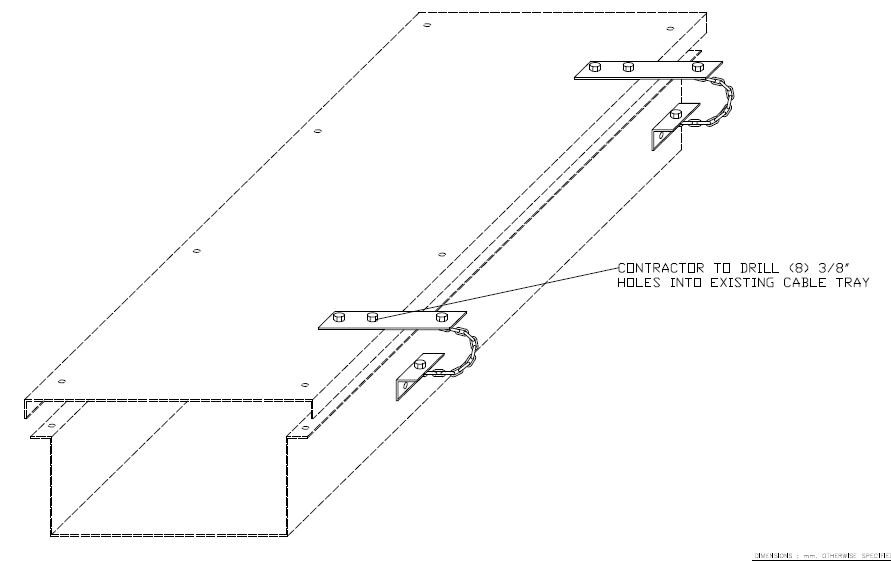

T-CHAIN — Cable Tray Lid Chain Kit

Cable tray lid retention kit designed to help secure lids during rooftop servicing and windy conditions.

The T-CHAIN kit attaches the cable tray lid to the tray using 16" chains while still allowing easy access for maintenance.

Includes

• (2) Chains

• Mounting plates

• Angles and bolts

• Order Cable Tray Separately

Compatible with Gord Telecom cable tray systems.
