Description
Saddle Bracket Assembly (SBA)
Pipe-to-Pipe Connection System

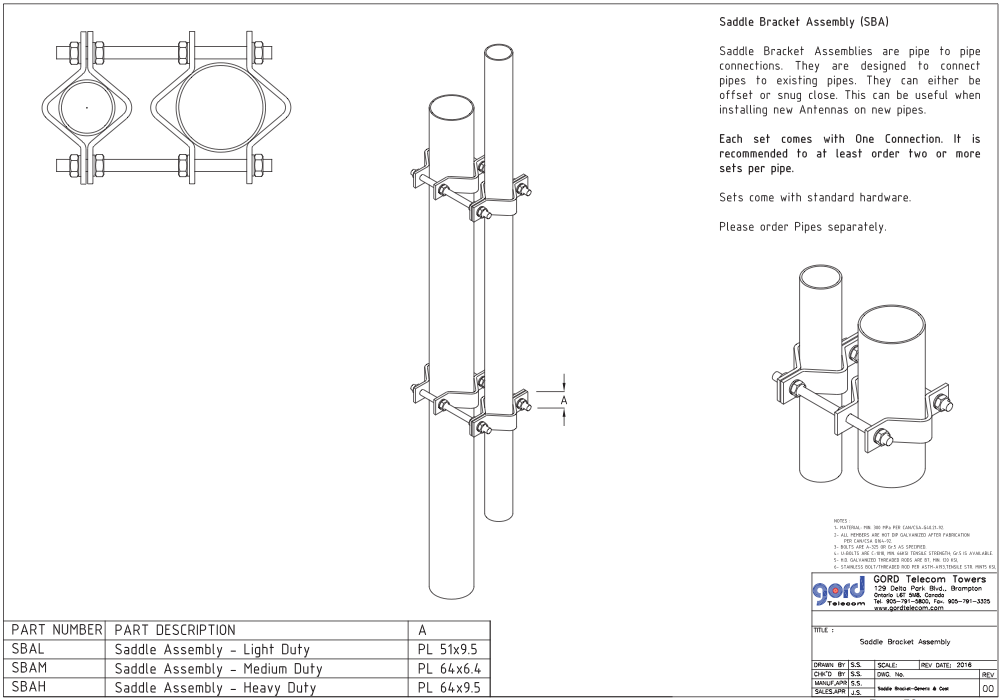

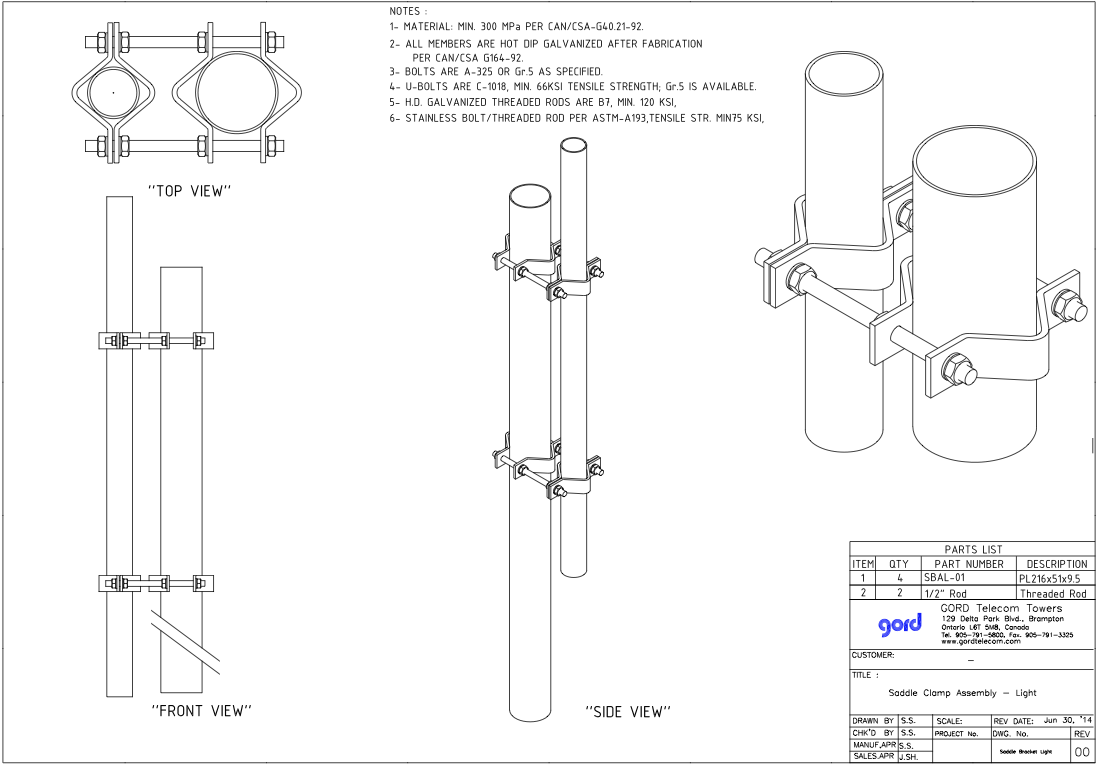

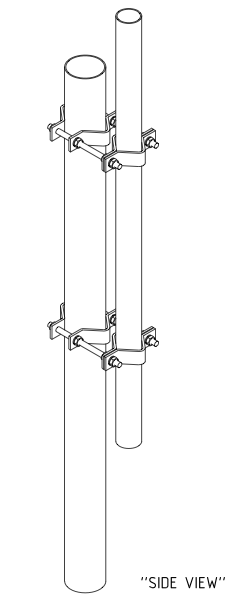

The Saddle Bracket Assembly (SBA) provides a compact, robust solution for connecting new antenna pipes to existing steel structures. Whether installed in a snug or offset position, the SBA enables fast and secure mounting with minimal hardware and no welding or drilling required. Its lightweight profile makes it ideal for retrofit installations where speed, simplicity, and reliability are key.
Each set includes high-strength galvanized hardware for a complete pipe-to-pipe connection. For structural balance and stability, it is recommended to use a minimum of two assemblies per connection.
Inc.
- (8) Saddle Plates
- (4) Threaded Rod Assemblies
Specifications:
-
Application: Snug or offset pipe-to-pipe connection
-
Configuration: Saddle-style clamp
-
Included Hardware: HDG bolts, nuts, and washers for one complete connection
-
Recommended Usage: Minimum of two per pipe
-
Finish: Hot-Dip Galvanized
-
Manufactured: Brampton, Ontario, Canada
Ordering Information:
-
Sets Sold Individually – One set contains enough for (2) rows and includes (8) plates and (4) threaded rod assemblies.
-
Pipes Sold Separately
-
Compatible with standard telecom and structural pipe sizes
-
Custom configurations available upon request
Key Benefits:
-
Quick and Simple Installation – Perfect for retrofit and upgrade projects
-
Compatible with Multiple Configurations – Supports snug or offset applications
-
Canadian-Made Quality – Built in-house at our Brampton facility for quick turnaround
-
Trusted Industry Performer – Used across telecom, utility, and structural retrofit installations
Key Facts
Stand-Off Distance: 100mm to 200mm Max.
Threaded Rod: (8) 1/2" x 13" Threaded Rods Supplied
Mount Weight: 8.4kg (Without Pipe)
Pipe Diameter: 73mm OD to 114mm OD
Pipe Length: 3m Maximum
Plate Dimensions
SBAL: PL 51x9.5 300W HDG Steel
