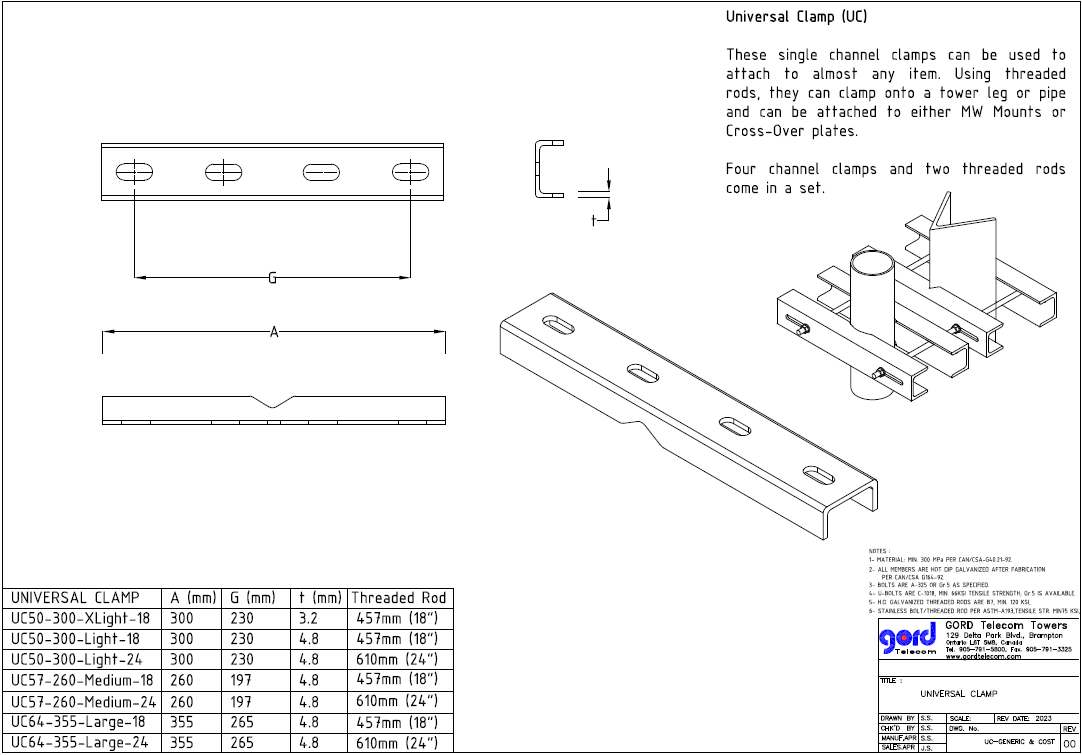

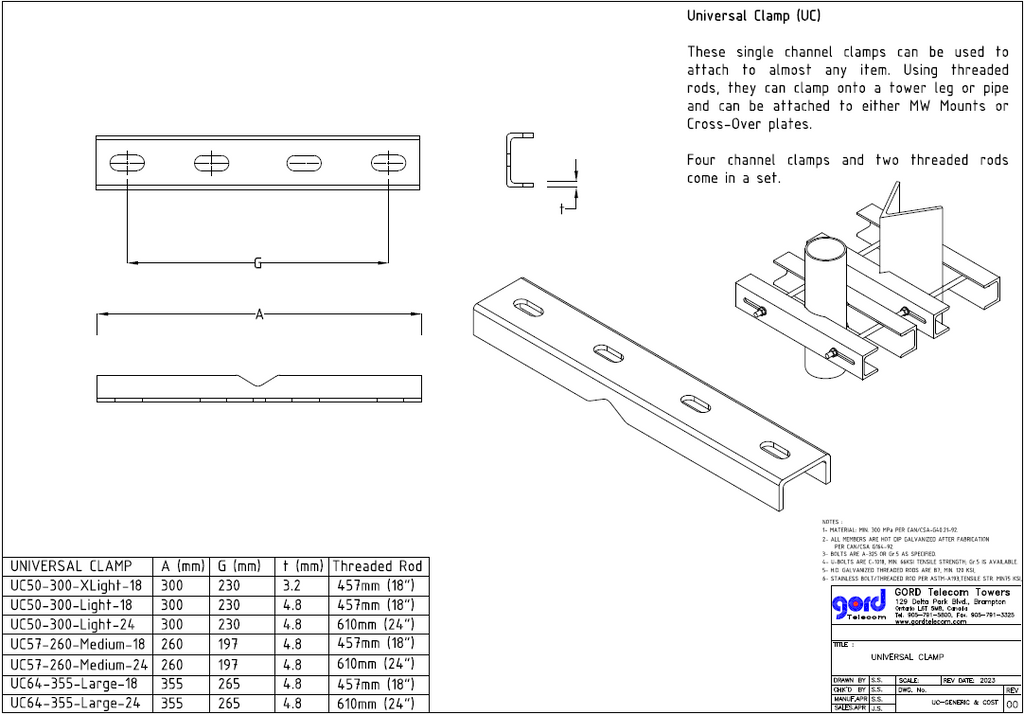

Universal Clamp (UC50-300)

Universal Clamp (UC)

Pipe-to-Pipe/Angle Connection System

The Universal Clamp (UC) provides a compact, robust solution for connecting new antenna pipes to existing steel structures. Whether installed in a snug or offset position, the SBA enables fast and secure mounting with minimal hardware and no welding or drilling required. Its lightweight profile makes it ideal for retrofit installations where speed, simplicity, and reliability are key.

Each set includes high-strength hot-dip galvanized hardware and bent channel plates for a complete, adjustable connection system. For proper structural alignment, we recommend using a minimum of two connection rows per pipe.

Included in Each Set:

(1) Pipe
(8) Bent Channel Plates (HDG steel)
(4) Threaded Rod Assemblies with nuts and washers

Specifications:

Application: Snug or offset pipe-to-pipe and pipe-to-angle connections
Configuration: Channel-style saddle clamp
Included Hardware: HDG bolts, nuts, washers, and threaded rods for one full connection
Recommended Usage: Two clamps per pipe minimum
Finish: Hot-Dip Galvanized
Manufactured: Brampton, Ontario, Canada

Ordering Information:

Sets Sold Individually – One set includes (8) bent channel plates and (4) threaded rod assemblies (enough for two clamp rows)
Pipes Sold Separately
Compatible with standard telecom and structural pipe sizes
Custom Sizes Available upon request

Key Benefits:

Fast, No-Weld Installation – Ideal for upgrades and field retrofits
Adaptable Design – Snug or offset connection, works with pipes and angles
Built for Canadian Conditions – Manufactured in-house for consistent quality and fast delivery
Trusted Across Industries – Proven use in telecom, utilities, and general steel retrofits
