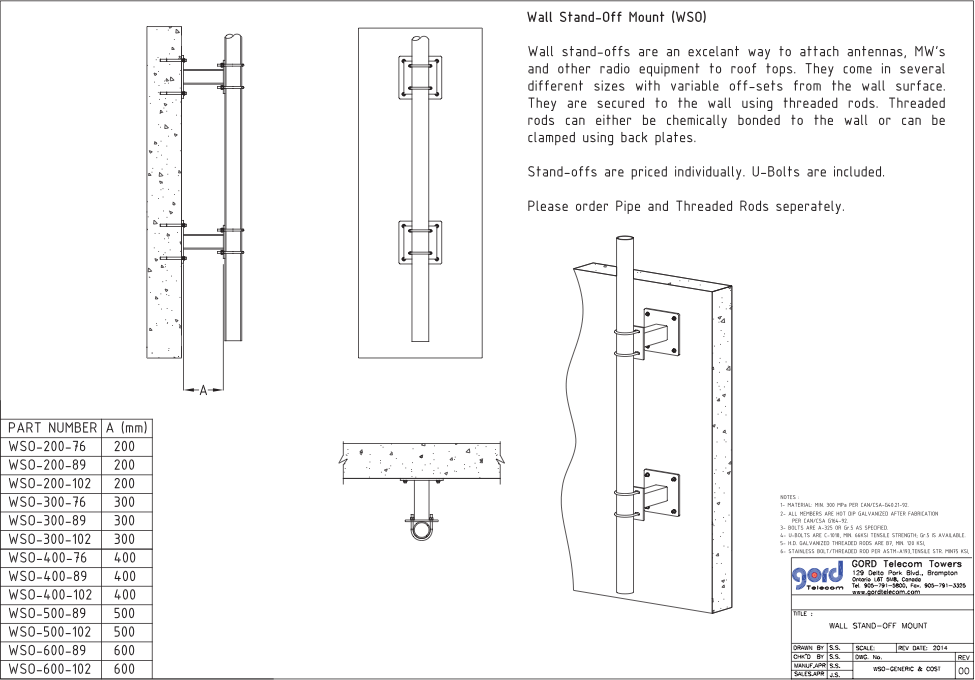

Wall Stand-Off Mount (WSO)

Pipe Mounting System for Vertical Wall Installations

The Wall Stand-Off Mount (WSO) offers a safe and secure solution for mounting antennas, microwave radios, and other telecom equipment directly to vertical wall surfaces. Designed for both new installations and retrofits, the WSO allows for customizable stand-off distances using standard threaded rods, offering flexibility while maintaining strength and stability.

Each set includes two stand-off assemblies with mounting hardware and a standard pipe. The system can be installed using chemical anchors or with optional back plates for through-bolt configurations—no welding or drilling required on the mounting surface.

Included in Each Set:

(1) Pipe
(2) Wall Clamp Assemblies
(4) U-Bolts with Nuts and Washers
(8) Wall Anchors

Specifications:

Application: Wall-mounted pipe installation for antennas and radio equipment
Configuration: Two-point wall stand-off system
Included Hardware: Anchors and U-bolts for pipe connection
Recommended Usage: One set per pipe
Finish: Hot-Dip Galvanized
Manufactured: Brampton, Ontario, Canada

Ordering Information:

Sets Sold Individually – One set includes (2) stand-off assemblies and (2) U-bolts
Pipe and Threaded Rods Sold Separately
Back Plates Available Upon Request
Compatible With standard telecom pipe sizes (typically 73mm to 114mm OD)
Custom Sizes and Offsets Available upon request

Key Benefits:

Flexible Stand-Off Range – Available in 200mm to 600mm stand-offs
Versatile Mounting Options – Use with chemical anchors or through-bolt back plates
Fast and Reliable Installation – No welding or specialized tools required
Canadian-Made Quality – Fabricated in-house for fast lead times and consistent quality
